LQE LW1000 1000W 61x40W LED Stage Light — DMX Setup & Wiring Guide
Product Overview
The LQE LW1000 is a professional 1000W LED stage lighting fixture featuring 61×40W high-output LEDs. Designed for concert stages, theaters, studios, nightclubs and events, the LW1000 combines raw power with smooth color mixing and reliable electronics to create stunning stage effects.
Key Features & Advantages
High Brightness, Low Heat
61×40W LEDs provide a powerful, uniform beam while advanced cooling ensures long life and stable performance.
Precise Control & Smooth Effects
Supports full DMX control for pixel-mapping, color change, dimming and strobe. Built-in effects let you produce dynamic looks without extra controllers.
Durable and Service-Friendly
Robust housing, easy-access panels and smart power management make maintenance simple. Backed by LQE’s manufacturing quality and 80 national patents.
User Manual — DMX Setup and Wiring Guide
Basic Connections
- Power: Connect AC power using the supplied IEC cable. Ensure voltage matches the fixture rating. Use proper fusing and cable gauge for safety.
- Grounding: Always connect the earth ground to prevent interference and ensure safety.
DMX Setup
- DMX Input/Output: Use standard 3-pin or 5-pin XLR cables as required. Connect DMX controller OUT to LW1000 DMX IN.
- Addressing: Set the DMX start address via the on-board menu or digital display. The LW1000 supports single-fixture control or multi-fixture addressing for pixel mapping.
- Termination: If the LW1000 is the last fixture on the DMX chain, attach a DMX terminator to the DMX OUT port.
Wiring Tips
- Use DMX-grade cables and keep power and DMX lines separate where possible.
- Avoid daisy-chaining too many fixtures without repeaters.
- Follow local electrical codes for outdoor installations.
Why Choose LQE
Founded in 2008 and based in Foshan, China, LQE offers OEM/ODM expertise, a 10,000 m² production base and annual output of 100,000 fixtures. We deliver high-quality LED stage lighting with excellent value and global support.
Ready to light your next production? The LW1000 delivers brightness, reliability and easy DMX setup to bring any stage design to life.

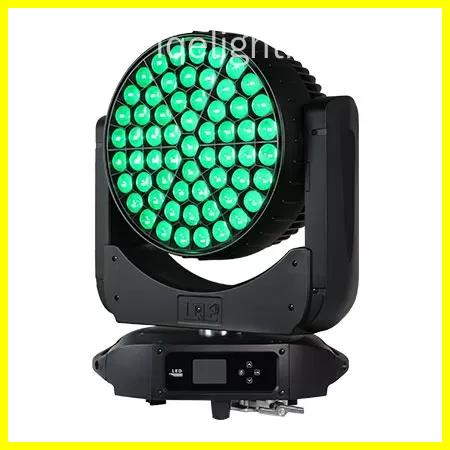

Product Images
Certificate display
ISO9001
ISO14001
ISO45001
Q&A
Can LQE help with product training and technical guidance?
Absolutely. We offer remote training sessions, user manuals, installation guides, and continuous technical support to help your team understand and sell our products with confidence.
Can I Have a Sample Order for an LED DJ Light?
Sure, sample order are welcome to test and check LQE quality. Mixed samples are acceptable.
What is your typical lead time for distributor orders?
Our standard production lead time is 15–30 working days depending on order volume and customization requirements. For stocked models or repeat orders, we can offer shorter delivery times.
What Is the Warranty Offered by LQE Lighting?
LQE lighting offers a comprehensive 1-year warranty and spare parts on its products, giving customers peace of mind and investment protection.
If you have any other questions, please write email to us or call us , we will reply you ASAP.
