Mastering Theatre Lighting Techniques: From McCandless to DMX Programming (2025 Guide)

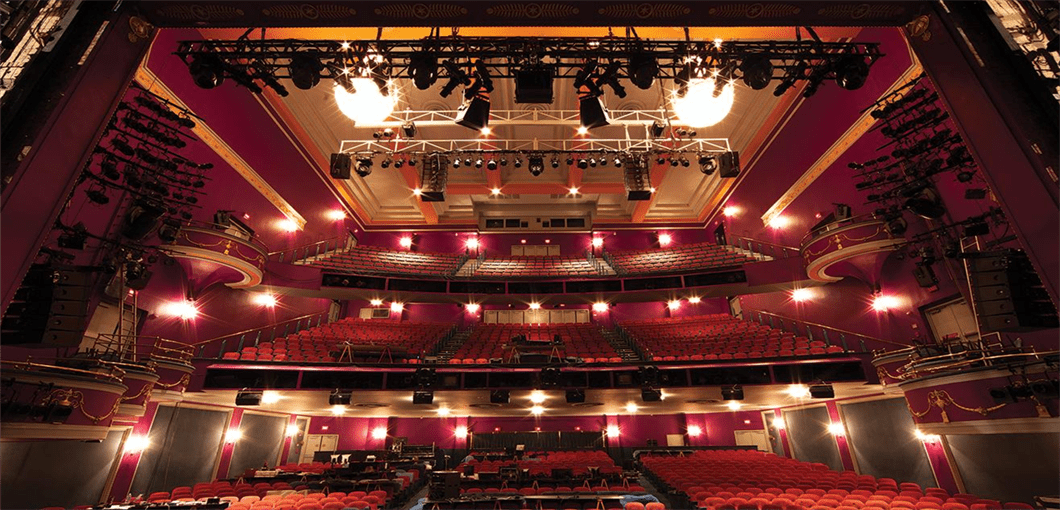

Lighting is the unseen character in every play. It dictates where the audience looks, tells them what time of day it is, and, most importantly, manipulates how they feel. In the modern era of stagecraft, the role of the lighting designer has evolved from a mere illuminator to an architect of atmosphere.

As we move through 2025, the convergence of traditional theory and digital innovation offers unprecedented control. However, with great power comes the need for rigorous technical knowledge. Whether you are transitioning a community theatre from incandescent dimmers to intelligent LEDs or designing a touring rig, success lies in the balance between artistic intuition and engineering precision.

The McCandless Method: The Foundation of Visibility

Before diving into moving heads and pixel mapping, every designer must master the fundamentals of visibility. Established by Stanley McCandless in the 1930s, this method remains the cornerstone of academic lighting design, yet it is often misunderstood or oversimplified.

Understanding the 45-Degree Angle Rule

The primary goal of stage lighting is visibility, but "flat" front lighting washes out facial features, making actors look two-dimensional. The McCandless Method solves this by positioning two lighting instruments for each acting area:

1. 45 Degrees Horizontal: The lights are placed 45 degrees to the left and right of the actor.

2. 45 Degrees Vertical: The lights are hung at a 45-degree angle of elevation.

This geometry casts shadows that mimic natural sunlight, modeling the eyebrows, nose, and chin, giving the face a three-dimensional definition without creating the "raccoon eye" shadows caused by steep down-lighting.

Balancing Warm and Cool Colors

To further enhance depth, McCandless prescribed using complementary colors. One light provides a warm tint (mimicking the sun or a primary light source, typically amber or pale gold), while the opposing light provides a cool tint (mimicking reflected skylight or shadow, typically pale blue or lavender).

In 2025, we no longer rely solely on physical gels (like Roscolux or Lee filters). With modern RGBW or RGBAL fixtures, we can dial in these specific Kelvin temperatures digitally.

· Pro Tip: If the scene is a dramatic tragedy, increase the contrast between your warm and cool sources. If it is a high-energy comedy, reduce the contrast to brighten the overall look.

Adapting 3-Point Lighting for Contemporary Drama

While McCandless is excellent for general visibility, modern drama often requires a more cinematic approach. Contemporary designers often modify the McCandless method by adding a third element: a dedicated backlight or "rim light." This light, placed behind the actor and high above, separates the subject from the background, creating a halo effect that pops on camera and to the live eye.

Advanced Color Theory and Quality: CRI vs. TLCI

As theatres transition to energy-efficient solutions, the market is flooded with LED options. However, not all LEDs are created equal. The most critical metric for a theatre designer today is the quality of light, specifically regarding color rendering.

Why Standard Color Washing Isn’t Enough

Cheap LED fixtures often rely on basic RGB (Red, Green, Blue) mixing. While these can create a white light, that white often lacks parts of the spectral energy distribution found in natural light or tungsten. This results in "metamerism failure"—where a costume looks purple in the dressing room but brown on stage.

The Impact of CRI (Color Rendering Index)

High CRI LED theatre lights are essential for professional productions. CRI is a quantitative measure (0 to 100) of the ability of a light source to reveal the colors of various objects faithfully in comparison with an ideal or natural light source.

· CRI < 80: Acceptable for rock concerts or background washes, but disastrous for skin tones. Actors may look sickly, grey, or greenish.

· CRI > 90: The gold standard for theatre. This ensures that makeup looks intentional, costumes retain their vibrancy, and skin tones appear healthy and natural.

Analyzing TLCI for Recorded Theatre

With the rise of "National Theatre Live" style streaming and archival recording, designers must also consider the TLCI (Television Lighting Consistency Index). A light might look good to the human eye (high CRI) but flicker or render colors poorly on camera sensors. TLCI analyzes how a camera sees the light.

· Strategy: When specifying fixtures for a venue that plans to livestream, always cross-reference the datasheet for a TLCI score above 85 to avoid post-production color grading nightmares.

Hardware Decisions: LED vs. Halogen Fixtures

The debate between classic Tungsten Halogen and Light Emitting Diodes (LED) is no longer about "better or worse," but about application and texture.

Power Consumption and Heat Output

Halogen fixtures are notoriously inefficient, converting roughly 90% of energy into heat and only 10% into light. This creates a hot environment for actors and requires heavy-duty HVAC systems.
LEDs, conversely, drastically reduce the electrical load. A traditional 750W Source Four Leko can be replaced by a 150W LED engine with similar output. This allows smaller venues to run complex stage lighting plot designs without tripping breakers or requiring three-phase power upgrades.

Understanding Dimming Curves and 'Tungsten Drift'

The biggest aesthetic loss in the switch to LED is the "dimming curve."

· Halogen: As a filament dims, it cools down, shifting the light toward the red end of the spectrum (Amber Drift). This feels organic and cozy.

· LED: Native LEDs dim linearly and stay the same color until they snap off.

· The Solution: Look for High CRI LED theatre lights that feature "Red Shift Emulation" or "Dim-to-Warm" technology. This software feature mimics the physics of a cooling filament, preserving the emotional impact of a slow fade-to-black.

Spotlights vs. Beam Lights

· Ellipsoidal Reflector Spotlight (ERS/Leko): Your primary tool for the McCandless method. It has shutters to shape the beam and a focus knob for sharp edges.

· Fresnels/PARs: Use these for washing the stage in color. They have soft edges and blend easily, making them perfect for filling in the gaps between your key lights.

Mastering Control: DMX Protocols and Programming

Behind every cue is a data signal. Understanding DMX512 programming logic is what separates a lighting operator from a lighting designer.

The Logic Behind DMX512 Addressing

DMX (Digital Multiplex) sends data in packets of 512 channels, known as a "Universe."

· Standard Dimmer: Uses 1 channel (Intensity: 0-100%).

· Intelligent Fixture: May use 20+ channels (Ch2: Pan, Ch2: Tilt, Ch3: Red, Ch4: Green, etc.).

Addressing Strategy: If Fixture A takes up 10 channels and starts at address 001, Fixture B must start at address 011. Overlapping addresses results in "ghosting" or chaotic fixture behavior.

Creating Dynamic Fades and Cues

Whether using industry-standard consoles like the GrandMA3, EOS Family, or software solutions like QLC+ and Onyx, the programming logic remains consistent:

1. Programmer: You select lights and apply values (active data).

2. Record: You save that snapshot as a Cue.

3. Tracking: Modern consoles use tracking logic. If you turn a light blue in Cue 1, it stays blue in Cue 2, 3, and 4 until you tell it to change. Understanding tracking is vital to prevent "hard cuts" when you intended smooth transitions.

Troubleshooting Signal Chains

DMX is a daisy-chain topology. The signal goes from the console -> Light 1 -> Light 2 -> Light 3.

· The DMX Terminator: The most common error in DMX systems is signal reflection. If the end of the cable run is left open, the data signal can bounce back, causing lights to flicker or strobe uncontrollably. Always place a 120-ohm resistor (Terminator) at the output of the final fixture in the chain.

The Blueprint: Creating Professional Lighting Plots

A stage lighting plot design is the engineering document that communicates your artistic vision to the electricians who hang the lights.

Standard Symbols and Notations

Using USITT standard symbols ensures any technician can read your map.

· Instrument Schedule: A spreadsheet listing every light, its DMX address, gel color, and purpose.

· Focus Points: Notations on the plot indicating where the light should literally point (e.g., "DSC" for Down Stage Center).

Calculating Beam Angles and Throw Distances

You must apply physics before the hang. If a light has a 19-degree beam angle and is hung 30 feet away, how big is the pool of light?

· Formula: Beam Width ≈ Distance × (2 × tan(Beam Angle / 2)).

· Using software tools like Vectorworks Spotlight or Capture allows you to visualize this coverage in 3D before a single ladder is climbed, saving hours of labor during tech week.

Sculpting the Space: Side, Back, and Texture Lighting

Once visibility (McCandless) is established, art begins.

Side Lighting for Dance and Form

Front light flattens; side light sculpts. For dance productions, side lighting (often from "Booms" or "Shin-busters" in the wings) is crucial. It catches the musculature of the body and creates dramatic contrast across the torso, emphasizing movement over facial expression.

Gobos and Texture

To break up the monotony of a flat floor, use Gobos (Go Between Optics). These steel or glass templates inserted into ERS fixtures project patterns—leaves, windows, abstract breakups.

· Atmosphere: A soft-focus leaf breakup can transform a bare stage into a forest.

· Texture: Subtle breakups on the floor can make the stage feel "lived in" rather than like a sterile studio.

Essential Safety: Rigging and Power Management

Creativity must never compromise safety. Theatre rigging involves suspending heavy equipment above people's heads. Adherence to rigging safety standards is non-negotiable.

Understanding Load Limits and Safety Cables

· SWL (Safe Working Load): Know the weight rating of your lighting bars/battens. Never overload a pipe at the center; distribute weight evenly.

· The Safety Bond: Every fixture must have a safety cable secondary to the C-clamp. If the primary clamp fails, the safety cable catches the light. This is a legal requirement in almost every jurisdiction.

Fire Safety and Distances

Even LEDs produce heat. Halogens produce immense heat.

· Ensure all fixtures have proper clearance from curtains (goods) and scenery.

· Use high-temperature cables (like silicone-jacketed SJOOW) for connecting fixtures near heat sources.

Cable Management

Messy cabling is a fire and trip hazard.

· Gaff Tape: Secure cables running along the floor.

· Coiling: Never tightly coil a power cable that is under high load; it creates an induction coil that can melt the insulation. Use the "Over-Under" coiling method to preserve copper strands.

Conclusion

Mastering theatre lighting techniques requires a blend of artistic intuition and technical precision. By moving beyond basic color washes to understand the physics of the McCandless Method, the logic of DMX512 programming logic, and the importance of High CRI LED theatre lights, you can transform any stage into an immersive world.

The journey from a blank stage lighting plot design to opening night is complex. It involves calculating beam angles, managing electrical loads, and strictly adhering to rigging safety standards. However, when the house lights dim and your cue executes perfectly, creating a collective gasp from the audience, the effort is justified. Whether you are upgrading to professional LED fixtures or refining your programming skills, prioritizing both safety and creativity will ensure your productions leave a lasting impact on your audience.

FAQs

What is the McCandless Method in theatre lighting?

The McCandless Method is a lighting design technique that uses two lights at 45-degree angles (one warm, one cool) to illuminate an actor's face, providing natural modeling and visibility while eliminating harsh shadows.

Why is CRI important for stage lighting?

CRI (Color Rendering Index) measures a light source's ability to reveal the true colors of objects. High CRI (90+) is crucial in theatre to ensure actors' skin tones look healthy and costumes appear vibrant rather than washed out.

How does DMX lighting control work?

DMX512 is a digital communication standard used to control intelligent lighting fixtures. It sends data packets to specific 'addresses' assigned to lights, allowing designers to control parameters like intensity, color, pan, and tilt remotely.

What is the main difference between LED and Halogen stage lights?

LEDs are more energy-efficient, produce less heat, and offer color changing without gels, whereas Halogen lights provide a traditional warm dimming curve and perfect color rendering but consume significantly more power.

What software is best for stage lighting plot design?

Industry-standard software for creating lighting plots includes Vectorworks Spotlight, Capture, and WYSIWYG. These tools allow designers to create 2D paperwork and 3D visualizations to check beam angles and coverage before installation.

Why is a DMX terminator necessary?

A DMX terminator is a resistor placed at the end of a DMX cable chain. It absorbs the signal to prevent it from reflecting back down the line, which causes data errors, flickering lights, and loss of control during a show.
