Beam, Spot, or Wash? The Definitive Guide to Choosing the Right Moving Head Lights (2026 Edition)

Quick Summary: The 30-Second Guide to Moving Heads

Moving head lights are classified into three primary optical types—Beam, Spot, and Wash—each serving a distinct role in stage lighting design, though modern hybrid fixtures increasingly combine these functions. If you are in a rush, here is the essential breakdown to make a fast decision.

• Key Takeaway 1: Spot lights are designed for texture, sharp focus, and gobo projection; Wash lights provide broad color coverage; Beam lights create tight, piercing aerial effects.
• Key Takeaway 2: Hybrid moving head fixtures allow a single unit to switch between these modes, becoming the versatile standard for 2026 touring rigs.
• Key Takeaway 3: LED engines have effectively replaced older discharge lamps in most applications, offering superior LED stage lighting ROI through lower heat and maintenance.
• Quick Decision Matrix:
  • Need Patterns/Logos? Buy a Spot.
  • Need General Color? Buy a Wash.
  • Need "Lightsaber" Effects? Buy a Beam.
  • Need Versatility? Buy a Hybrid.

What is the Difference Between Beam, Spot, and Wash Moving Heads?

A Beam vs Spot vs Wash comparison comes down to the optical beam angle and the physical components (gobos, frost, lenses) installed in the head to shape the light output. These "intelligent" fixtures use stepper motors to pan and tilt, but their core identity lies in the lens.

• The Spot Light: Defined by hard-edged beams (typically 10°–30°) and the inclusion of Gobo Wheels and motorized focus. They are the artists of the rig, painting patterns on stages and walls.
• The Wash Light: Defined by soft-edged output and a wide zoom range (often 10°–60°). They use Fresnel or pebble-convex lenses to blend colors (CMY/RGB) smoothly without "hotspots."
• The Beam Light: Defined by a near-parallel beam angle (often 0°–5°) that remains tight over long distances. They are less about illuminating an object and more about creating mid-air architecture.

At Guangzhou Yingfeng Light Equipment Co., Ltd. (LQE), we have spent nearly two decades refining these optical systems. Our 10,000-square-meter production base produces over 100,000 of these fixtures annually, ensuring that whether you need a razor-sharp beam or a silky wash, the optics are precision-engineered.

Deep Dive: When to Choose a Spot Moving Head

A Spot moving head is your primary tool for projecting images, creating texture, and highlighting specific performers or set pieces with a hard-edged circle of light. It is the "storyteller" of the lighting rig.

• The Role of Gobos: Spots feature wheels holding glass or metal disks called Gobos (GOes Before Optics). These create the breakup patterns (foliage, windows, abstract shapes) that give a stage depth.
• Focus and Zoom: Unlike washes, Spots require motorized focus to keep the gobo crisp at different throw distances.
• Ideal Applications: Theater productions requiring specific cues, corporate events projecting logos, and concert stages where you need to highlight a guitar solo.
• Pro Tip: Look for fixtures with Prism effects (3-facet or linear) which split the single gobo image into a rotating array, covering more space with visual interest.

Deep Dive: When to Choose a Wash Moving Head

A Wash moving head is designed to flood a large area with uniform color, serving as the "base coat" of paint for your lighting design canvas. These fixtures prioritize high light output and smooth color mixing over defined edges.

• Color Mixing Mastery: High-end washes use CMY (Cyan, Magenta, Yellow) subtractive mixing to create millions of colors, including pastels, whereas budget models use RGBW additive mixing.
• The 'Zoom' Factor: A quality wash must have a massive zoom range. At 5°, it can act like a soft beam; at 50°, it can light an entire dance floor.
• Ideal Applications: General stage illumination, backlighting bands to separate them from the background, and architectural wall washing.
• Frost Filters: While washes are naturally soft, many now include variable frost filters to diffuse the light even further for camera-ready TV lighting.

Deep Dive: When to Choose a Beam Moving Head

A Beam moving head emits an extremely narrow, intense shaft of light that remains parallel for hundreds of feet, designed primarily for aerial visual impact rather than illuminating a subject. This is the fixture that brings energy to a room.

• Punch Through the Haze: Because the beam is so tight, it maintains intensity over long distances. However, you must use haze (atmospheric fog) to make the beam visible in the air.
• Speed and Agility: Beam fixtures generally have smaller, lighter lenses, allowing the motors to move them faster than heavy wash or spot lights. This makes them ideal for rapid movement in EDM and rock.
• Safety Note: Beam lights focus energy intensely. As noted in safety standards, avoid projecting high-intensity beams directly into eyes at close range.

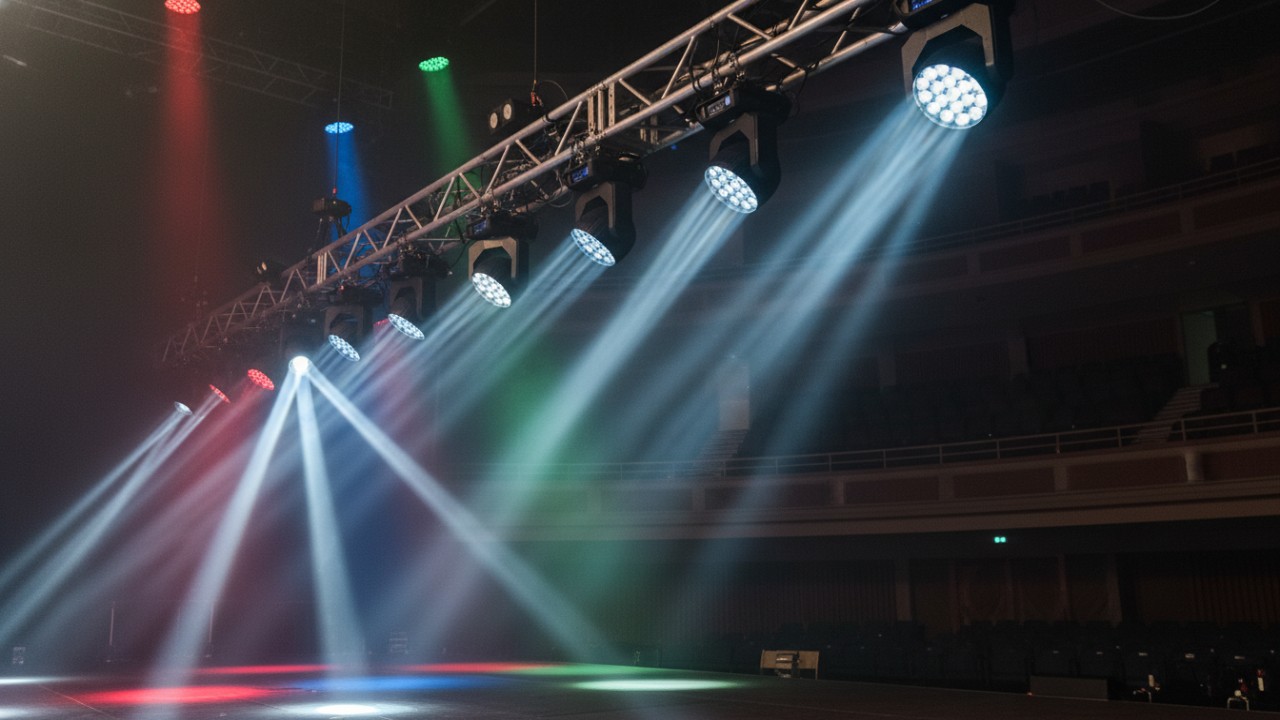

The Game Changer: Hybrid Moving Heads (Spot/Beam/Wash)

Hybrid moving head fixtures are all-in-one units that utilize advanced zoom optics and insertable frost filters to physically transform from a sharp Beam to a focused Spot or a soft Wash. For 2026, these are the most ROI-positive investment for rental houses.

• The All-in-One Solution: Instead of buying 10 Spots and 10 Washes, you can buy 12 Hybrids and reprogram them show-by-show.
• Cost vs. Versatility: While a hybrid might cost 20% more than a dedicated spot, it eliminates the need to transport double the inventory.
• LQE Innovation: At LQE, our R&D team (holding 80 national patents) has developed hybrid optical paths that minimize the "hotspot" compromise often seen in older hybrid fixtures, delivering a flat field in all three modes.
• Future-Proofing: As venue designs become more flexible, having fixtures that can adapt to any role is essential.

Buying Guide: Key Specs You Cannot Ignore

When evaluating fixtures, you must look beyond the wattage and check the optical quality, cooling systems, and ingress protection ratings. This is where professional-grade manufacturing separates itself from budget toys.

• Source Type: LED Engines are the standard for 2026. They last 50,000 hours compared to the 750-2,000 hours of older discharge lamps.
• IP Ratings (Ingress Protection): For outdoor festivals, IP65 is critical. This rating ensures the fixture is dust-tight and protected against water jets.
  • Experience Note: LQE specializes in waterproof stage lighting. We test our IP65 beam and hybrid lights rigorously to ensure they survive rain and dust, reducing rental damage costs.
• DMX Channels: Ensure the fixture supports the channel density of your console. Complex hybrids may require 30+ channels per light.

Cost of Ownership & ROI Analysis

Calculating LED stage lighting ROI involves looking at the total lifecycle cost, including energy consumption, bulb replacements, and maintenance labor, not just the sticker price.

• Power Consumption: LED fixtures draw significantly less power than discharge lamps, allowing you to run more lights on standard venue circuits.
• Maintenance Cycles: Traditional bulbs explode if handled poorly and fade over time. LEDs degrade slowly. LQE fixtures are designed with easy-access modular panels to speed up fan cleaning and belt tensioning, reducing technician labor hours.
• Resale Value: Brand reputation matters. Fixtures from established manufacturers with patent-backed technology hold value better in the used gear market.

Expert Tips for Setup and DMX Programming

Intelligent lighting DMX programming is the language used to tell your fixtures what to do, governed by the DMX512 standard. Mastering this is crucial for venue lighting design basics.

• DMX512 Standard: DMX (Digital Multiplex) is the industry standard for controlling lighting equipment. According to Wikipedia, it creates a communication network where a controller sends signals to dimmers and intelligent fixtures.
• Universe Management: A single DMX "Universe" controls 512 channels. With modern hybrids using 30 channels each, you can only fit about 16 lights per universe. Plan your data cabling accordingly.
• The Importance of Haze: We cannot stress this enough: beams are invisible in a vacuum. You are lighting the air, not the wall. A good hazer is as important as the lights themselves.
• Safety Standards: Always adhere to rigging standards such as those published by ESTA to ensure fixtures are hung safely overhead with proper safety cables.

Conclusion

Choosing between Beam, Spot, and Wash fixtures ultimately depends on your specific artistic needs and venue constraints. Spots provide texture and focus, Washes provide color and coverage, and Beams provide aerial excitement. However, the rise of high-quality Hybrid moving head fixtures offers a compelling solution for maximizing versatility and ROI in 2026. By selecting reliable, IP-rated equipment from experienced manufacturers like LQE, you ensure your show runs flawlessly every night.

Contact us today to optimize your stage lighting strategy and request a quote for our 2026 fixture lineup.

FAQ

What is the difference between a spot and a wash moving head?

A Spot light has sharp edges, motorized focus, and gobo wheels for patterns, making it ideal for highlighting specific subjects or projecting logos. A Wash light has soft edges, a wide zoom range, and is designed to cover large areas with smooth color, lacking the ability to project sharp images.

Do I need a DMX controller for moving head lights?

Yes, to fully utilize movement, colors, prisms, and patterns, a DMX controller or software is required. While most fixtures (including LQE models) have 'Sound Active' or 'Auto' modes for simple plug-and-play operation, intelligent lighting DMX programming unlocks the true potential of the fixture.

Are LED moving heads better than bulb (discharge) moving heads?

Generally, yes. LEDs run cooler, consume less power, and have much longer lifespans (50,000+ hours) compared to discharge bulbs. While massive stadium-sized beams still use discharge lamps for raw output, high-power LED engines have largely closed the brightness gap for most venues.

What is a Hybrid moving head light?

A Hybrid fixture combines the optical features of Beam, Spot, and Wash lights into a single unit. They use advanced motorized zoom optics and insertable frost filters to change the beam angle dynamically, offering maximum versatility for rental companies and touring acts.

How many moving head lights do I need for a band or DJ?

For a basic mobile DJ setup, 2 to 4 moving heads (typically mounted on totems) are sufficient to create energy. For a full band stage, venue lighting design basics suggest a minimum of 4 washes (for backlight/color) and 4 spots or hybrids (for texture and aerial effects) to achieve a professional look.

Can I use moving head lights outdoors?

You can only use them outdoors safely if they are rated IP65 or higher, which makes them waterproof and dustproof. Standard indoor fixtures (IP20) can be used outdoors only if protected by a weather dome or roof structure, but using dedicated IP65 waterproof stage lighting from LQE is the safer, more reliable choice.

What are gobos in moving head lights?

Gobos (GOes Before Optics) are stencils made of metal or glass placed inside the light to project patterns (stars, logos, abstract shapes). They can be static (fixed) or rotating, and are a defining feature of Spot and Hybrid fixtures.

Why can't I see the light beams in the air?

Light beams are technically invisible unless they reflect off particles in the air. To see the 'beams' clearly and create that 'concert look,' you must use a haze machine or fog machine to create an atmosphere for the light to catch.
